Improvement Measures of Period Pad Machine

Author:Haina Machinery Factory FROM:Diaper Machinery Manufacturer TIME:2022-04-28

This paper relates to the field of cooking and separating fibers for sanitary napkins, in particular to disinfection and sterilization equipment for the production of period pad machine.

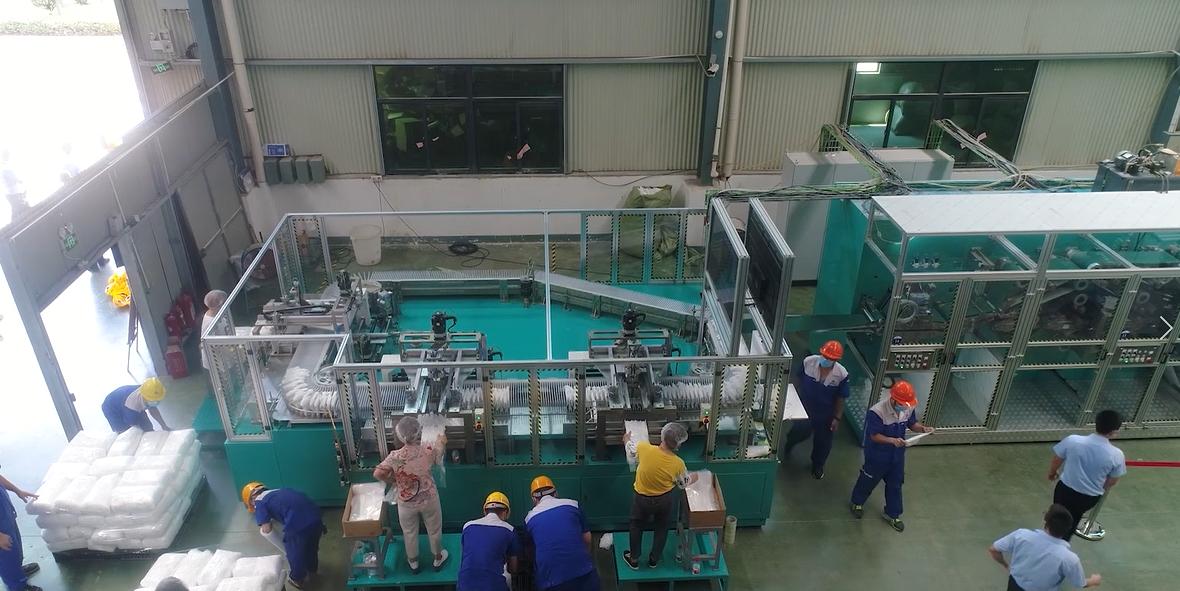

Period pad machine

1. Improvement measures for period pad machine

The structure of the disinfection and sterilization equipment for production includes a disinfection mechanism, a controller and a sealed door. The controller is embedded on the left side of the disinfection mechanism. The sealed door is hinged with the disinfection mechanism. The controller is located on the left side of the sealed door. The disinfection mechanism is provided with a disinfection cabinet, an irradiation plate, a fixed mechanism and a two-way irradiator. The irradiation plate is installed on the inner side of the disinfection cabinet, and the fixed mechanism is embedded on the inner bottom of the disinfection cabinet, The fixing mechanism is located on the left and right sides of the two-way irradiator, the disinfection cabinet is hinged with the sealing door, the fixing mechanism can fix two sanitary napkins, and the two-way irradiator can emit ultraviolet rays to the left and right sides, so that the non penetrating faces of the sanitary napkin fit each other and are placed in the fixing mechanism. The fixing mechanism is provided with a compression mechanism, a limit mechanism spring and a connecting plate, the upper end of the mechanical compression mechanism is attached to the lower surface of the connecting plate, the lower end of the spring is embedded in the upper end of the limit mechanism, the upper end of the spring is installed at the lower end of the connecting plate, the compression mechanism is located in the middle of the limit mechanism, the connecting plate is embedded in the bottom end of the disinfection cabinet, and the limit mechanism is provided with two, which are distributed on the left and right sides of the compression mechanism.

As a further improvement of the period pad machine, the limit mechanism is provided with a compression ring and a stop mechanism limit plate, the stop mechanism is installed on the upper left side of the compression ring, the compression ring is attached to the inner side of the limit plate, the upper end of the limit plate is embedded at the lower end of the spring, the compression ring is an arc structure, and there is a gap in it. The blocking mechanism is provided with a connecting groove, a friction plate, a blocking rod and plastic fluff. The blocking rod is located inside the connecting groove, the plastic fluff is embedded in the upper left side of the friction plate, the connecting groove is embedded in the friction plate, the lower end of the friction plate is installed on the upper left side of the compression ring, and the plastic fluff is a curved structure, which has the effect of increasing friction.

As a further improvement of the pants type sanitary napkin machine, the compression mechanism is provided with a stretching mechanism, a compression plate and a sealing groove, the stretching mechanism is embedded on the left and right sides of the compression plate, the sealing groove is embedded in the compression plate, and the compression plate The upper end is attached to the lower surface of the connecting plate, the left and right sides of the compression plate are continuous curved arc structures, and the stretching mechanism is distributed on the arc sides acting outward.

The period pad machine stretching mechanism is provided with a spring rod, a stretching plate and a movable groove The elastic plate, the stretching plate is attached to the lower end of the elastic plate, the movable groove is located inside the stretching plate, the spring rod is installed on the left side of the upper end of the elastic plate, the spring rod is embedded on the left and right sides of the compression plate, and the stretching plate is made of rubber material with tensile ductility.

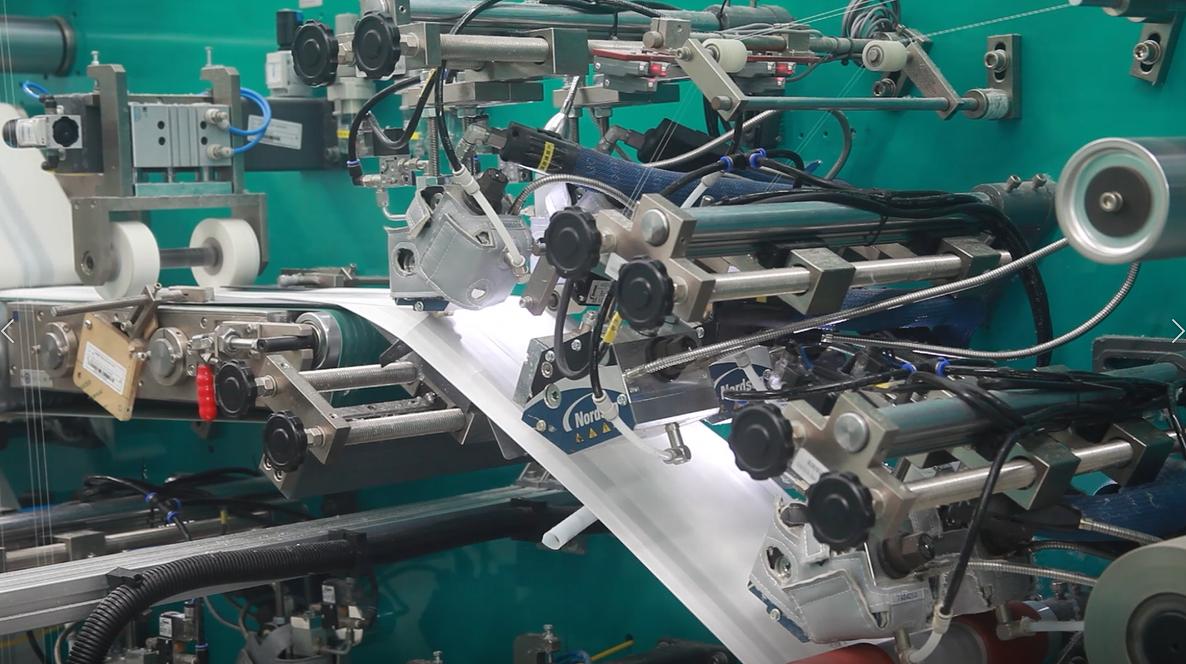

 Menstrual pads machine

2. Beneficial effects of period pad machine

(1) The sanitary napkin is placed on both sides of the menstrual pads machine, so that the sanitary napkin acts with the compression ring in the limit mechanism under the restoring force of the spring. At the same time, the one side of the sanitary napkin that is not easy to penetrate fits with each other. Its two ends are placed in the fixed mechanism for disinfection through the irradiation plate and two-way irradiator, so as to avoid the problem that the mesh material blocks the ultraviolet ray. At the same time, the sanitary napkin compresses the friction plate under the force of the elastic sheath, Make the plastic fluff in the upper left side of the friction plate of the sanitary napkin rub and block, so as to prevent the sanitary napkin from sliding during stretching.

(2) The sanitary napkin compresses the outside of the stretching plate in the stretching mechanism, so that the fixing of the sanitary napkin presents the effect of point stress. The elastic plate is compressed by the stretching plate to fix the sanitary napkin. The elastic plate is moved through the movable groove, so that the spring rod fixed on the outside of the compression plate supports the elastic plate, and the supporting force compresses the sealing groove inside the compression plate to deform the period pad machine compression plate, Enhance the adhesion force of sanitary napkins on both sides, so that the stress points of sanitary napkins are arranged, so as to avoid too small friction caused by uniform stress of sanitary napkins, and prevent the upper and lower ends of sanitary napkins from sliding under tension.

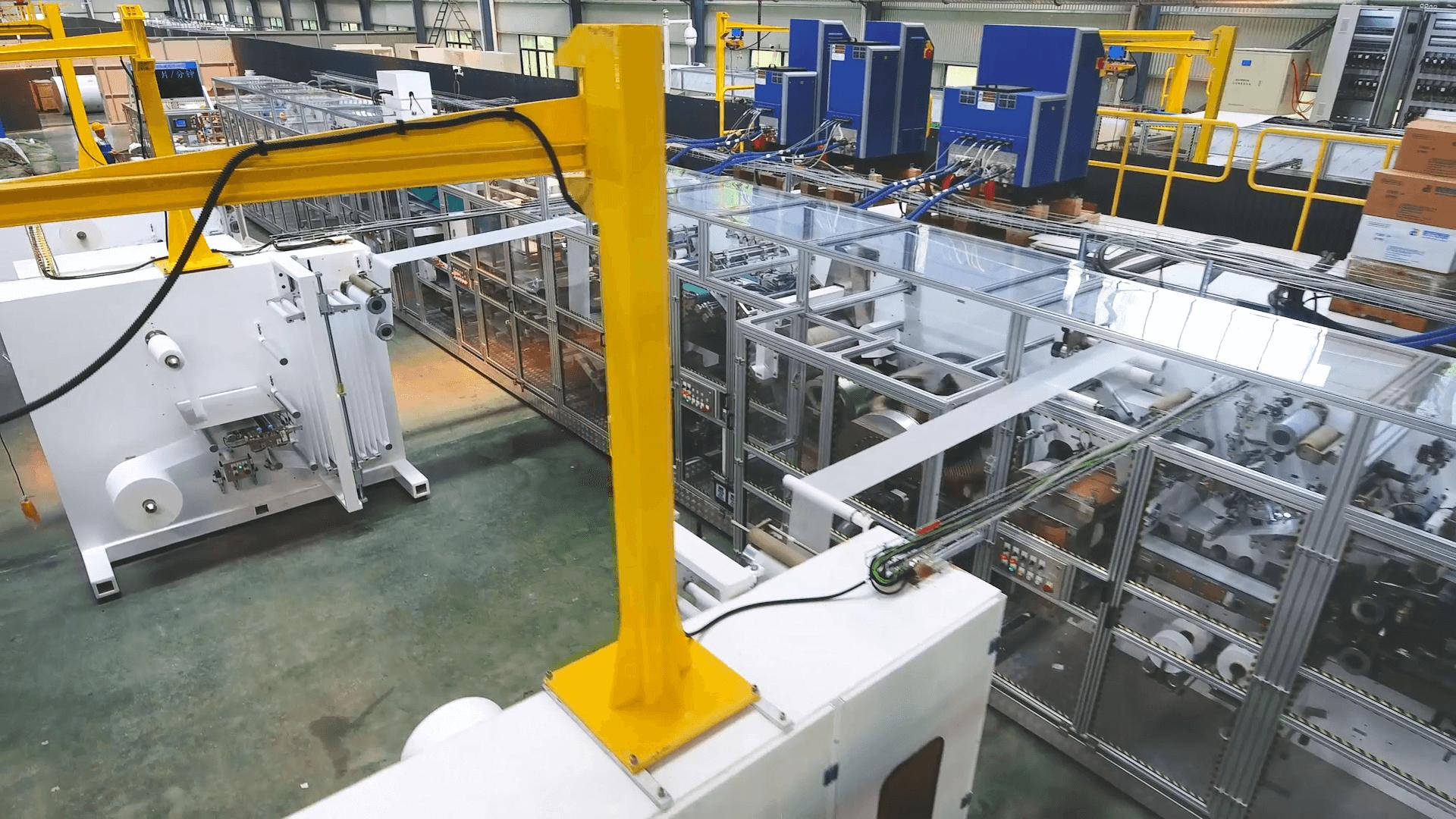

 Menstrual pads production line

Through the specific analysis of the improvement measures of disinfection and sterilization equipment for the production of period pad machine, it can better serve the production.
