HJ-MN100 Super Mini Wet Wipes Production Line

HJ-MN100 Super Mini Wet Wipes Production Line
HJ-MN100 Super Mini Wet Wipes Production Line
HJ-MN100 Super Mini Wet Wipes Production Line
Product Details:
Place of Origin: CHINA
Brand Name: HAINA
Configuration: Confirmed per project
Model Number: HJ-MN100
Payment & Shipping Terms:
Order Scope: Confirmed equipment modules
Quotation: Based on product and automation scope
Export Packing: Confirmed in offer
Lead Time: Confirmed in contract
Payment Terms: Confirmed in contract
Delivery Scope: Confirmed in technical agreement
Get Quote
OEM scope map

HJ-MN100 is two machines configured as one compact-wipe project

The line combines the HJ-MN2 folding machine with the HJ-PM50 super-mini packer. OEM work should keep the wipe, liquid, stack and 115 × 40 × 20 mm reference package connected through every approval milestone.

HJ-MN100 super mini wet wipes production line

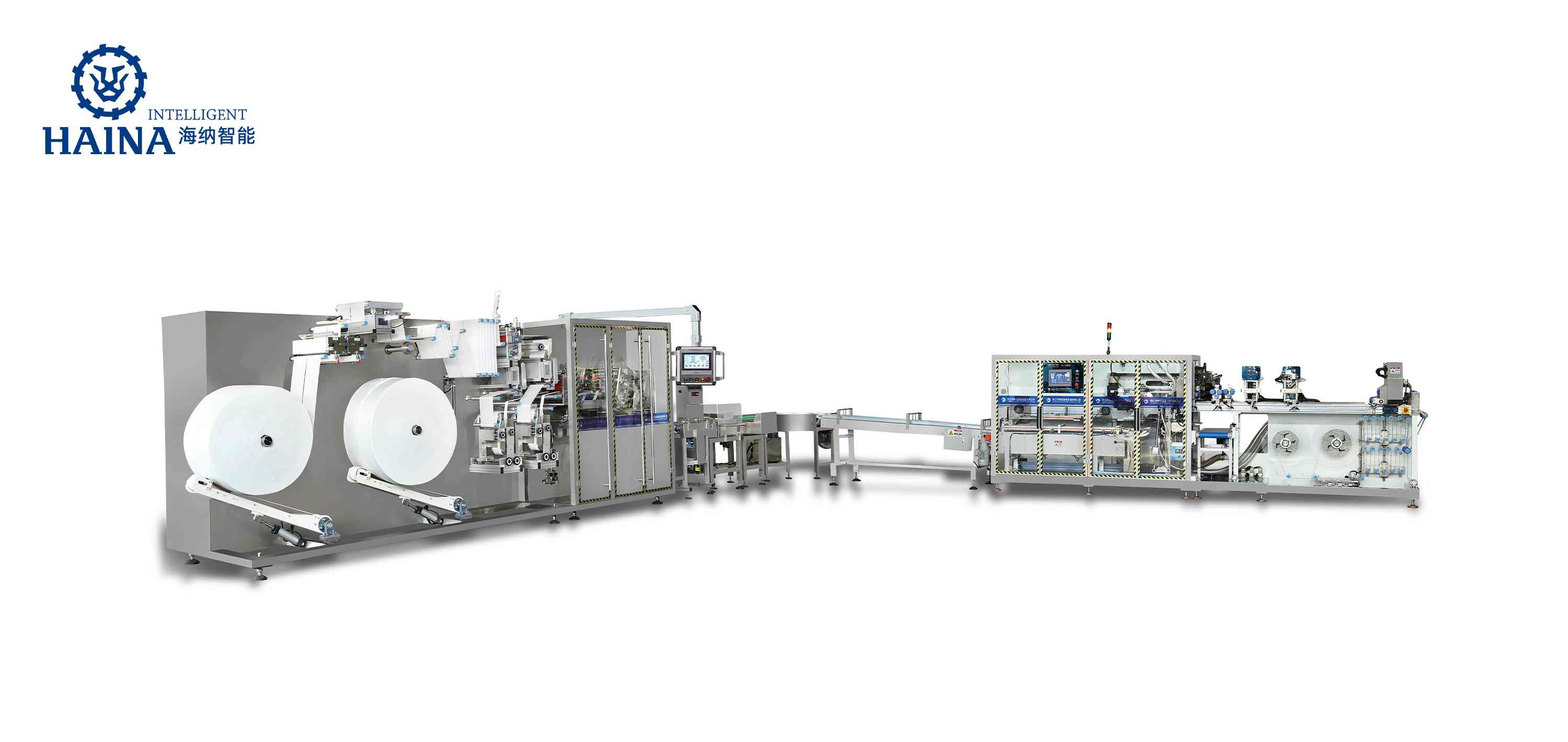

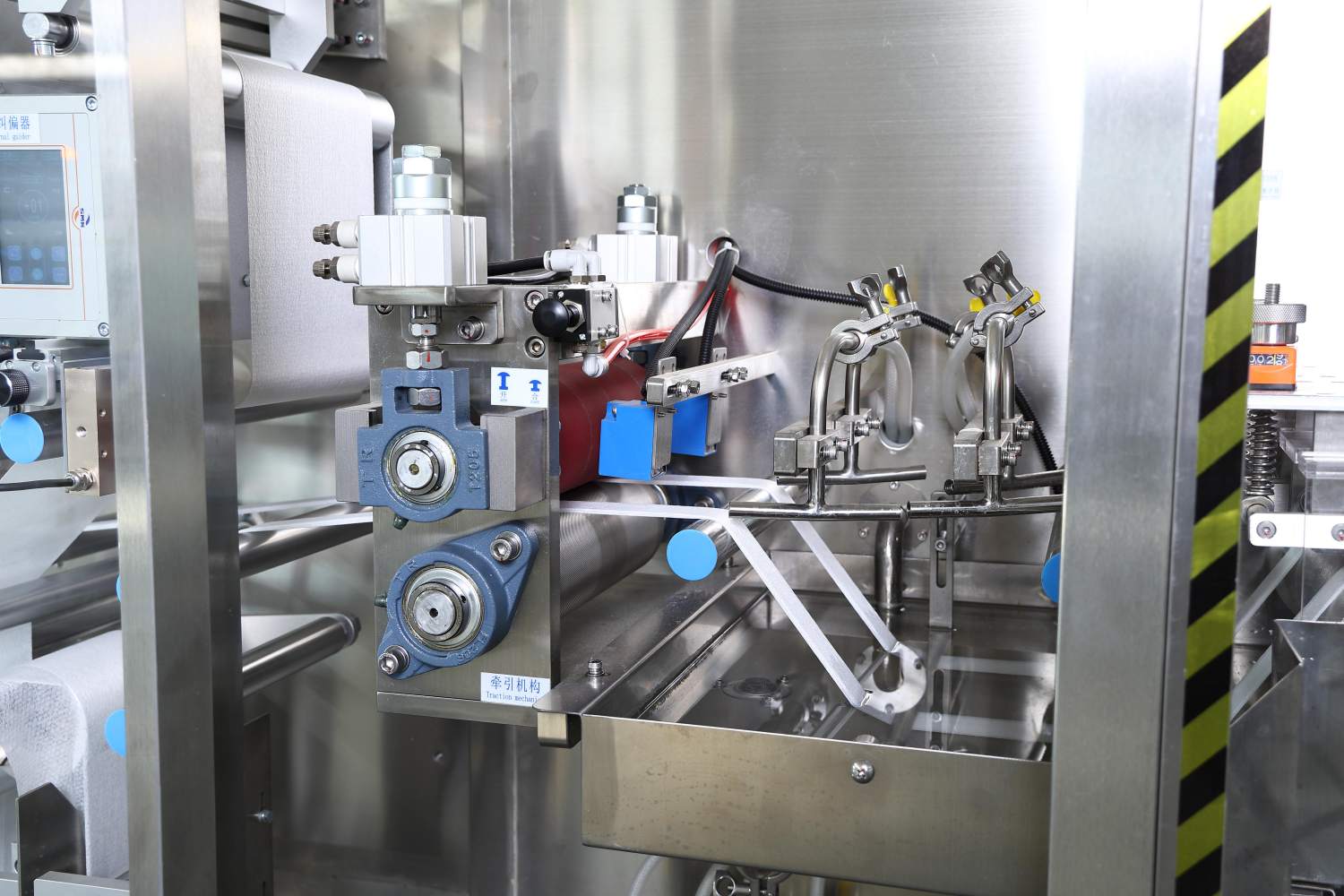

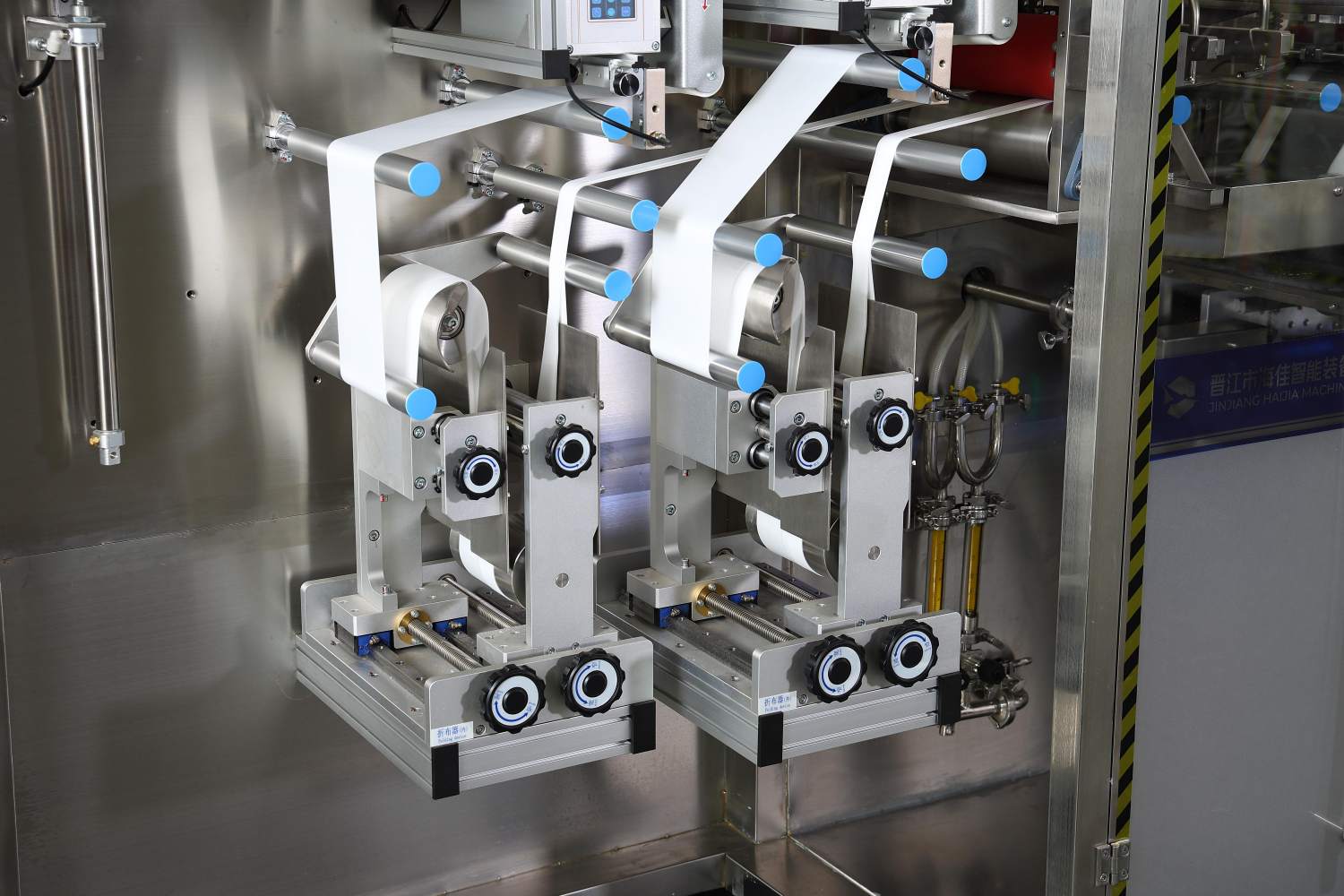

HJ-MN100 compact line overview. Folding and liquid-addition module. Super-mini packaging section. Compact wet wipes line detail.

Milestone 1: product brief

Wipe

Spunlace or calender-bonded nonwoven, 35-80 g/m2; unfolded 140-200 × 130-205 mm; folded 70-100 × 38-70 mm.

Stack

5-30 pieces with stack height below 60 mm; 80 bags/min recorded for 10 pieces and 50 bags/min for 20 pieces.

Pack

CPP or PE heat-sealing film and a regular 115 × 40 × 20 mm mold and package reference, with other sizes customizable.

Milestone 2: module interface

  1. Folding

    Two jumbo-roll axes support non-stop splicing with 3-inch cores. Confirm roll width, fold type and slitting arrangement.

  2. Liquid

    Choose immersion or spray, target the recorded 2.5-4 times liquid-addition detection range and approve the 650 L tank arrangement.

  3. Stacking

    Independent servo stacking should be accepted for neat stacks and rejection of detected splice joints.

  4. Transfer

    Freeze the stack orientation, height and timing between HJ-MN2 and HJ-PM50.

  5. Packaging

    Approve the 115 × 40 × 20 mm reference mold, film roll and 80-100 bags/min packaging range.

Milestone 3: engineering release

ItemHJ-MN2 folding moduleHJ-PM50 packer
Power11 kW22 kW
Air0.6-0.8 MPa, 130 L/min0.6-0.8 MPa, 200 L/min
Recorded size6180 × 1300 × 2100 mm6550 × 13000 × 2000 mm
Recorded weightAbout 3000 kgAbout 2500 kg
ControlMulti-axis controller, servo drive and 10-inch touch screenPackaging controls for the agreed compact format
Drawing check: The recorded packer width is 13000 mm. Confirm that value on the issued OEM layout before factory utilities or foundations are prepared.

Milestone 4: option and inspection lock

The source lists online slitting, web guiding, date printing, metal detection and weight detection with rejection as options across the line. The OEM file should state which machine owns each signal, where rejected material goes and what test piece or sample demonstrates acceptance.

Milestone 5: FAT and handover

Materials

Use labelled nonwoven, lotion, film and approved pack components.

Run

Record output by pack count, liquid result, splice rejection and sealing appearance.

Training

Cover threading, recipe change, cleaning, alarms and safe recovery.

Records

Retain settings, samples, drawings, option checks and open-item closure.

OEM questions

What makes HJ-MN100 a super-mini line?

Its saved packaging reference is 115 by 40 by 20 mm and the HJ-PM50 is configured for compact wipe packs.

Is 80-100 bags/min the complete-line speed for every count?

It is the recorded HJ-PM50 range. The folding record gives 80 bags/min for 10 pieces and 50 for 20, so integrated output depends on count and acceptance.

Can pack dimensions be customized?

The source says other mold and package specifications can be customized. The approved sample and issued mold drawing should control the OEM scope.

OEM conclusion

HJ-MN100 becomes a manageable OEM project when the compact package controls the folding, liquid, stacking and transfer decisions from the start. HAINA and the buyer can then release drawings and FAT criteria milestone by milestone without separating the two modules from the finished pack they must produce.

HJ-PM50 Super Mini Package Machine

 Material

 CPP/ PE etc. hot sealing materials

 Film Roll Spec

 Max W60mm*Φ600mm

 Mold Spec

 L: 115mm  W: 40mm  H: 20mm ( Regular specification, other spec. can be customized)

 Jumbo Roll Axis

 2 axis of film roll, core dia.: 3"

 Package Size

 L: 115mm  W: 40mm  H: 20mm (Regular specification, other spec. can be customized)

 Production Speed

 80-100 bags/min

 Machine Size

 L: 6550mm  W: 13000mm  H: 2000mm

 Machine Weight

 About 2500KG

 Machine Power

 AC380V (customizable), 50/60Hz, three phases five wires, 22KW

 Air Supply

 0.6-0.8Mpa, 200L/min

 Optional Devices

 Date printer, metal& weight detection and rejection device



HJ-MN2 Folded Type Wet Wipes Folding Machine

 Material

 Spunlace nonwoven fabric, calender bonded nonwoven fabric etc.

 Material Basic Weight

 35-80g/㎡

 Jumbo Roll Spec

 Max W205*2 (same paper core) mm*Φ1200mm

 Jumbo Roll Axis

 2 axis of jumbo rolls, splicing without stopping the machine, core dia: 3"

 Unfold Dimension

 L: 140-200mm  W: 130-205mm

 Fold Dimension

 L: 70-100mm   W: 38-70mm

 Folding Type

 Vfold, N fold, 1/2 fold

 Slitting

 Screw cutting, 6 pcs of cutting knives, lower the noise, longer the service life of knives

 Optional Devices

 Online slitting, web guide controller, metal& weight detection and rejection device

 Production Parameters

 1. Stack quantity: 5-30 pieces ( height < 60mm)

 2. Production Speed: 80 bags/min (for 10 pcs)

 3. Production Speed: 50 bags/min (for 20 pcs)

 4. Splicing joints detection, auto rejection

 Liquid Adding Method

 1. Immersion or spray type, as per different materials

 2. 2.5-4 times liquid adding detection, set the liquidweight by touch screen

 3. Real-time detection of liquid bucket level, setthe alarm position of liquid by touch screen

 4. 650L stainless steel hygienic grade water tank

 Control Method

 1. Multi-axis controller, driven by servo motor

 2. 10 inches touch screen, easy for operation

 3. Stacking controlled by independent servo, ensure neat stack and splicing joints rejection

 Machine Power

 AC380V (customizable), 50/60Hz, three phases five wires, 11KW

 Machine Size

 L: 6180mm  W: 1300mm  H: 2100mm

 Air Supply

 0.6-0.8Mpa, 130L/min

 Machine Weight

 About 3000KG
