HJ-MN2 Folded Type Wet Wipes Production Line

HJ-MN2 Folded Type Wet Wipes Production Line
HJ-MN2 Folded Type Wet Wipes Production Line
HJ-MN2 Folded Type Wet Wipes Production Line
Product Details:
Place of Origin: CHINA
Brand Name: HAINA
Configuration: Confirmed per project
Model Number: HJ-MN2
Payment & Shipping Terms:
Order Scope: Confirmed equipment modules
Quotation: Based on product and automation scope
Export Packing: Confirmed in offer
Lead Time: Confirmed in contract
Payment Terms: Confirmed in contract
Delivery Scope: Confirmed in technical agreement
Get Quote

Choose HJ-MN2 from the finished pack backward

This folded wet wipes line joins the HJ-MN2 folding module to the HJ-PM70 automatic packer. The correct configuration depends on wipe material, unfolded and folded dimensions, fold pattern, count, liquid ratio, package size and label. Those decisions also reveal the actual line bottleneck.

1Wipe and lotion
2Fold and stack
3Package and label
4Accepted bags

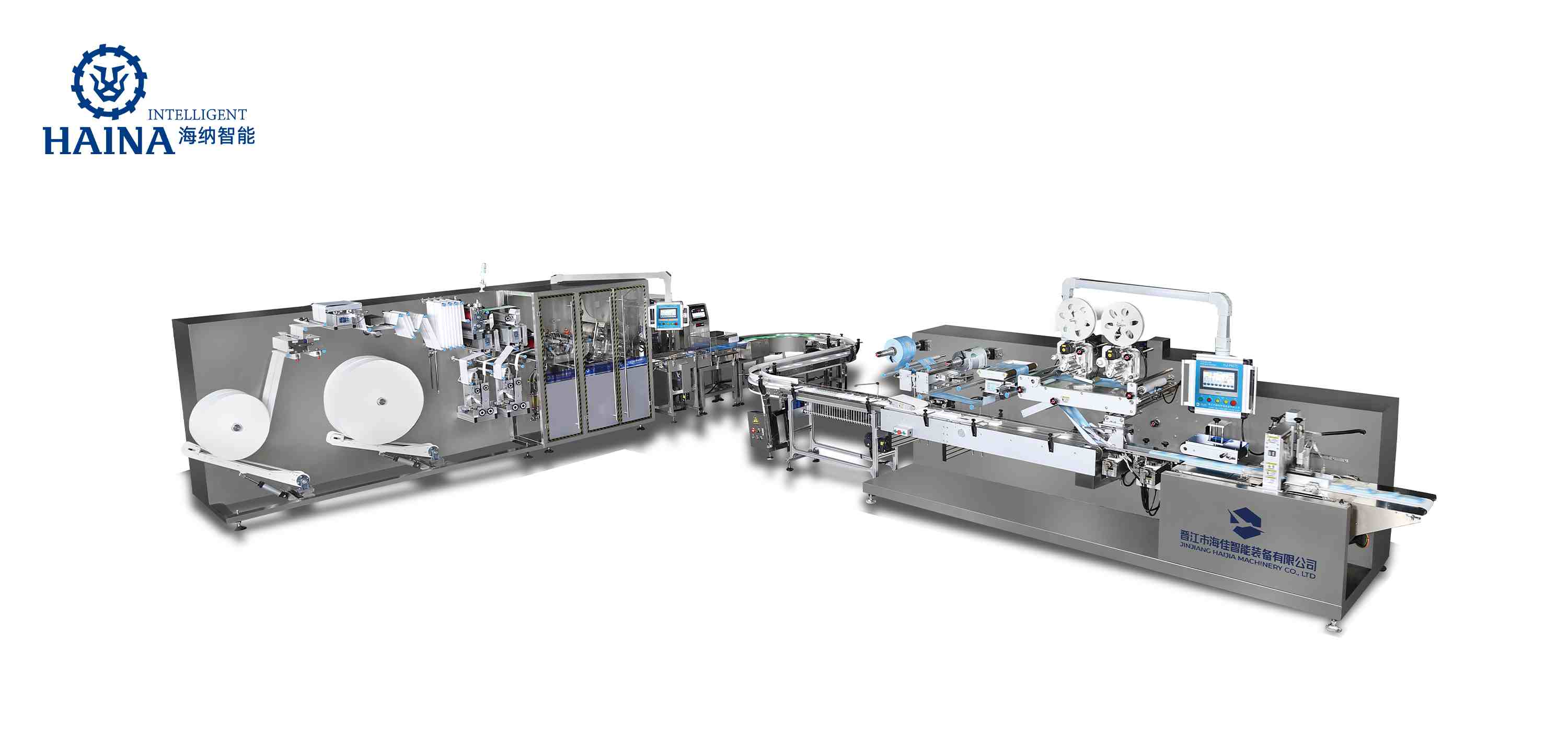

HJ-MN2 folded wet wipes production line

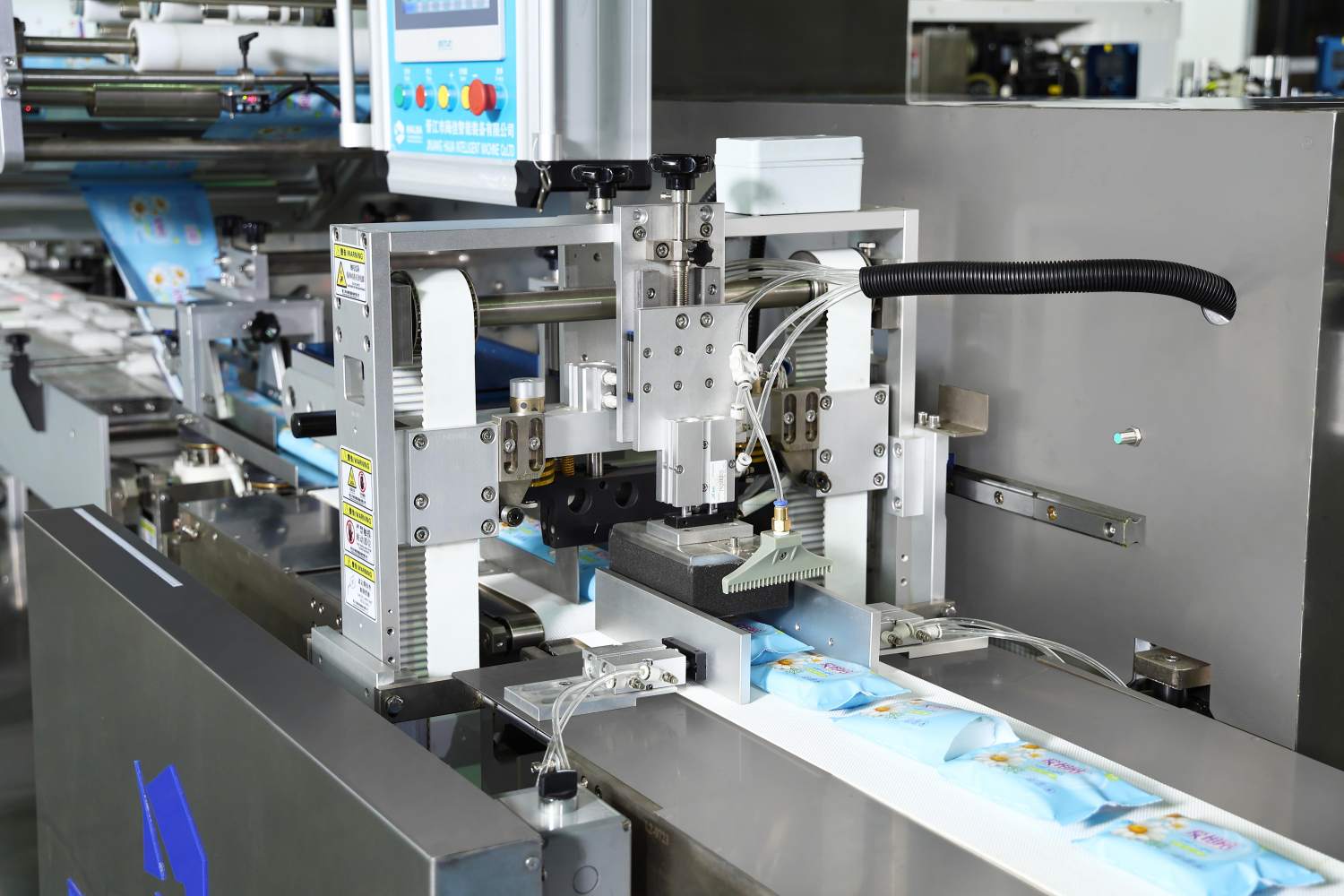

HJ-MN2 folding and packing line. Wet wipes folding section. Integrated line and access detail. Packaging format, opening and label must be approved with the finished pack.

Decision 1: define the wipe

NonwovenSpunlace or calender-bonded nonwoven, 35-80 g/m2
Jumbo rollMaximum W205 × 2 mm, diameter 1200 mm, 3-inch core
Unfolded wipe140-200 mm long and 130-205 mm wide
Folded wipe70-100 mm long and 38-70 mm wide
Fold typeV fold, N fold or half fold
Stack5-30 pieces, below 60 mm stack height

Decision 2: match liquid addition to the material

The recorded liquid system supports immersion or spray according to the nonwoven. It lists a 2.5-4 times liquid-addition detection range, touch-screen weight setting, real-time tank-level detection and a 650 L hygienic-grade stainless-steel tank. The buyer should supply lotion properties and the target wet weight, because pump, wetting method and line speed must be accepted as one process.

Decision 3: identify the bottleneck by pack count

Folding and stacking reference

80 bags/min for 10 pieces and 50 bags/min for 20 pieces are recorded for the folding module.

HJ-PM70 packaging reference

The packer is listed at 50-75 bags/min with packages from 140-350 mm long, 80-120 mm wide and 10-90 mm high.

Line decision

The integrated output is governed by the slower accepted module for the selected count, package and material. Do not add the two module speeds.

Decision 4: freeze film, label and sealing

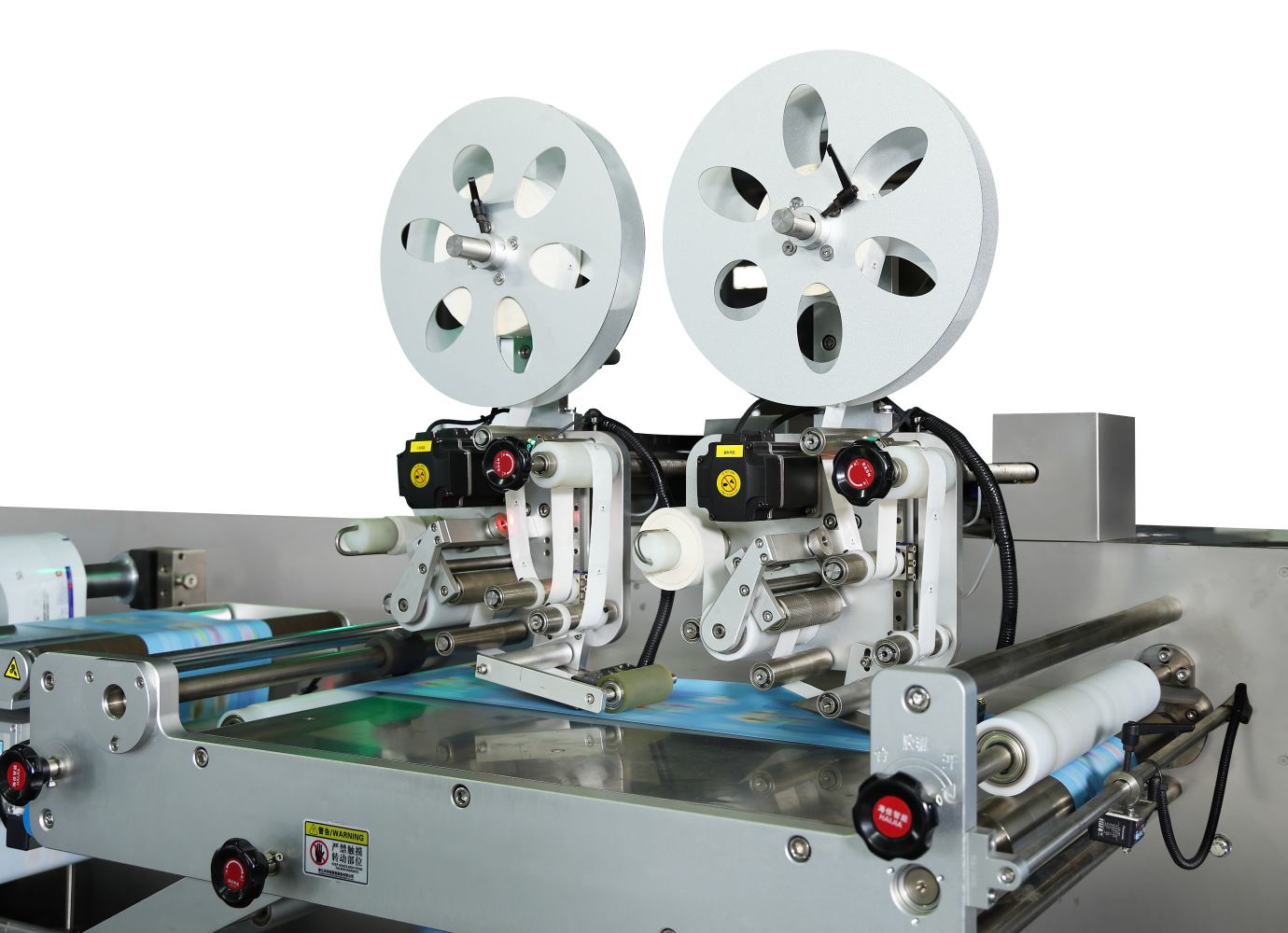

The package record lists PET/PE, BOPP and PET/AL/PE heat-sealing films, transparent or non-transparent labels, a maximum 60 mm by 300 mm label roll and a customizable 40 mm by 20 mm opening. HJ-PM70 uses three vertical-seal assemblies and reciprocating horizontal sealing. Film seal window, print registration, opening position and label peel behavior should be trialled with the final rolls.

Module utilities and options

HJ-MN2 folding module

  • 11 kW recorded power
  • 6180 × 1300 × 2100 mm
  • 0.6-0.8 MPa, 130 L/min air
  • About 3000 kg

HJ-PM70 packer

  • 15 kW recorded power
  • 5800 × 13000 × 2100 mm as recorded
  • 0.6-0.8 MPa, 150 L/min air
  • About 2000 kg

Recorded options include online slitting, web guiding, date printing, and metal and weight detection with rejection. Each option needs an acceptance method and a defined reject destination. The unusual recorded width of 13000 mm for the packer should be confirmed on the issued layout drawing before civil work.

Procurement file to approve

  • Nonwoven grade, roll and fold specification
  • Lotion and target liquid weight
  • Count, stack height and pack drawing
  • Film, label and opening samples
  • Module speed and integrated-line acceptance table
  • Utility, layout and optional-device boundary

Procurement questions

Is 80 bags/min the speed of every HJ-MN2 package?

No. The record gives 80 bags/min for 10 pieces and 50 bags/min for 20 pieces; the HJ-PM70 packer has its own 50-75 bags/min range.

Can any nonwoven between 35 and 80 g/m2 run without testing?

The range is recorded, but the real grade, thickness, stretch and liquid behavior should be trialled.

Which dimensions need confirmation first?

Freeze unfolded wipe, folded wipe, count and finished pack. They determine folding, stack height and packaging settings.

Buying conclusion

HJ-MN2 is a complete-line decision, not a folding-machine purchase with a packer added later. HAINA and the buyer should work backward from the approved wet wipe and retail pack, then lock module speeds, liquid control, options and utilities in one acceptance matrix.

HJ-MN2 Folded Type Wet Wipes Folding Machine

 Material

 Spunlace nonwoven fabric, calender bonded nonwoven fabric etc.

 Material Basic Weight

 35-80g/㎡

 Jumbo Roll Spec

 Max W205*2 (same paper core) mm*Φ1200mm

 Jumbo Roll Axis

 2 axis of jumbo rolls, splicing without stopping the machine, core dia: 3"

 Unfold Dimension

 L: 140-200mm  W: 130-205mm

 Fold Dimension

 L: 70-100mm   W: 38-70mm

 Folding Type

 Vfold, N fold, 1/2 fold

 Slitting

 Screw cutting, 6 pcs of cutting knives, lower the noise, longer the service life of knives

 Optional Devices

 Online slitting, web guide controller, metal& weight detection and rejection device

 Production Parameters

 1. Stack quantity: 5-30 pieces ( height < 60mm)

 2. Production Speed: 80 bags/min (for 10 pcs)

 3. Production Speed: 50 bags/min (for 20 pcs)

 4. Splicing joints detection, auto rejection

 Liquid Adding Method

 1. Immersion or spray type, as per different materials

 2. 2.5-4 times liquid adding detection, set the liquidweight by touch screen

 3. Real-time detection of liquid bucket level, setthe alarm position of liquid by touch screen

 4. 650L stainless steel hygienic grade water tank

 Control Method

 1. Multi-axis controller, driven by servo motor

 2. 10 inches touch screen, easy for operation

 3. Stacking controlled by independent servo, ensure neat stack and splicing joints rejection

 Machine Power

 AC380V (customizable), 50/60Hz, three phases five wires, 11KW

 Machine Size

 L: 6180mm  W: 1300mm  H: 2100mm

 Air Supply

 0.6-0.8Mpa, 130L/min

 Machine Weight

 About 3000KG





HJ-PM70 Full-Automatic Package Machine

 Material

 PET/PE、BOPP、PET/AL/PE etc. hot sealing materials

 Jumbo Roll Axis

 2 axis offilmrall 2 axis of lableroll, splicing without stopping themachine,core dia:3"

 Lable Roll Spec

 Max W60mm*Φ300mm

 Packing Size

 L: 140-350mm  W: 80-120mm  H: 10-90mm

 Hole Size

 L40mm*W20mm (customizable)

 Lable

 Transparent & non-transparent lable

 Production Speed

 50-75 bags/min

 Heating Method

 1. 3 sets of new type vertical sealing assembly, ensure constanttemperature under high-speed

 2. Reciprocating horizontal sealing assembly, enhance the pressureto achieve high pressure but low temperature, ensure horizontalsealing appearance

 Control Method

 1. Multi-axis controller, use EtherCAT communication, full servodriven.

 2. Film roll, lable roll auto splicing without stopping the machine

 Machine Power

 AC380V (customizable), 50/60Hz, three phase five wires, 15KW

 Machine Size

 L: 5800mm  W: 13000mm  H: 2100mm

 Air Supply

 0.6-0.8Mpa, 150L/min

 Machine Weight

 About 2000kg

 Optional Devices

 Web guide controller, date printer, metal& weight detection and rejection device
