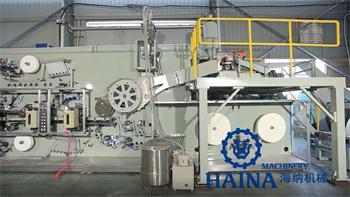

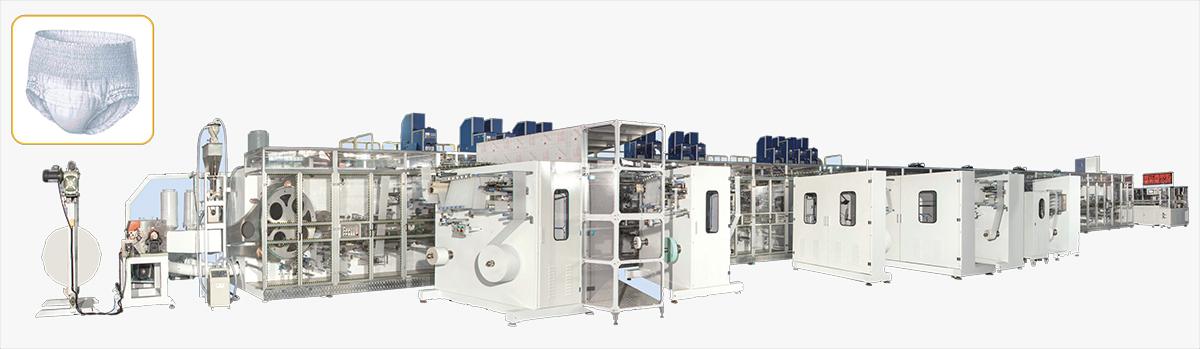

CLK500 Full Servo Automatic Menstrual Pants Manufacturing Machine

Control architecture from unwind to discharge

Tension and guiding are separate control jobs

Recipe and size-change evidence

1. 01

   Approve the menstrual-pants drawing and material schedule for each planned size.

2. 02

   List tooling, servo recipes and manual adjustments needed for the change.

3. 03

   Run the new recipe and record waist recovery, leg opening, core position, side bond and final fold.

4. 04

   Retain settings, samples and restart observations as the changeover record.

The old record lists Adult Pant 700 mm by 780 mm and Menstrual Pant 560 mm by 620 mm, while the page title is specifically menstrual pants. Do not assume both products are included: accepted sizes, tooling and product forms must be confirmed in the contract and FAT.

Safety, utilities and physical interface

Control-focused factory acceptance

• Trace each critical material from unwind to its controlled station.
• Demonstrate alarms and recovery without hiding rejected pieces.
• Record stable production with the approved recipe and material lots.
• Verify safety devices and the customer-defined stacker boundary.
• Archive HMI recipes, samples, stop logs and approved settings together.

CLK500 control questions

For HAINA and the buyer, the practical next step is a control responsibility map tied to one signed product sample. That document turns the CLK500 automation record into testable project scope.
