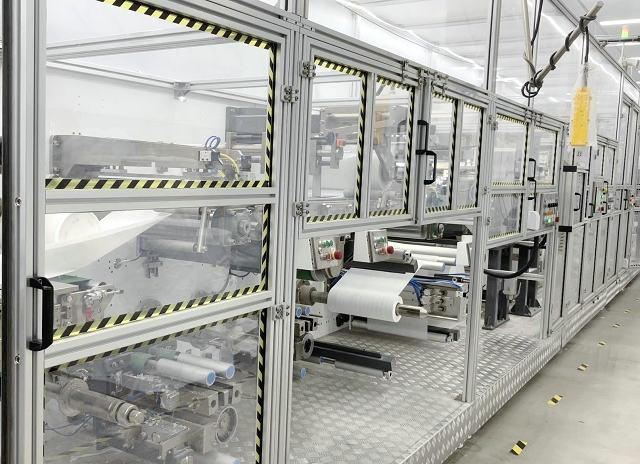

WSJ1000-Full Automatic Sanitary Napkin Machine
Automatic Sanitary Napkin Machine
Sanitary Napkin Making Machine
Sanitary Napkin Machine
Product Details:
Place of Origin: CHINA
Brand Name: HAINA
Certification: CE, ISO
Model Number: WSJ1000 Sanitary Napkin Machine
Payment & Shipping Terms:
Minimum Order Quantity:1 SET
Price:Negotiable
Packaging Details:Film wrapped
Delivery Time:150 Days
Payment Terms:T/T
Supply Ability:72 SETS / YEAR
Get Quote

1. Feminine Full Automatic sanitary napkin machine Program System

Servo driven, intelligent HMI touch screen man-machine interface
2. Tension  System
Tension control with buffer system, automatic web guiding system, to ensure materials stable working at zero speed splice.
3. Driven System
Servo drive, digital size change, ensure run synchronously at full process.
4. Driven System
Servo drive, digital size change, ensure run synchronously at full process.
5. Safety System
Safety guard for operating side, emergency stop switch, security identifier, safety pull wire at driven side.
6. Auto Pack System
Auto stacker and Packaging machine to be defined by customer need.
7. Web Guiding System
BST ,Germany/FIFE, USA
8.Feminine Napkins Machine+Auto Bagger Customized Function Available


Sanitary Pads Machine

Full Automatic Sanitary Napkin Machine

Dimensions(L×W×H8)

30m*6m*3m

Design Speed:

1000ppm

Stable Working Speed:

800-900ppm

Rejection Rate:

≤3%

Efficiency:

≥85%

Power Source:

380V,50HZ

Machine Capacity:

220KW

Air Pressure:

0.6-0.8Mpa

Machine Weight:

55 tons


This is Haina Sanitary Napkin Making MachineIt is able to produce sanitary napkin in two sizes, 290mm and 320mm, Stable working speed 1000pcs/min for 290mm.

Haina Sanitary Napkin Making Machine can produce thick and ultra thin two types of sanitary napkin.  In order to promote more diversified products to market, and earn more market shares, some customers bring in high speed machine. Its capacity is more than twice compared with regular speed machine.

Haina Sanitary Napkin Machine has the characteristics of excellent performance, high production stability, lower rejection rate, more automatic and easier operation.

Full Automatic Feminine Sanitary Napkins Machine

No. Raw materials
1 Topsheet(NW or PPF)
2 Fluff pulp
3 SAP
4 ADL N.W.
5 Tissue
6 Backsheet
7 Back release paper
8 Wings release paper
9 Pouch film
10 Easy tape
11 Air laid paper
12 SAP Paper
13 Hydrophobic N.W.
14 Construction glue
15 Position glue
Sanitary Napkins Machine
Why Work With HAINA
1
Quality Guarantee
CNC finishing and work with famous brands.
2
Fast service
We concern what you concern.
3
One Year Warranty
We back our machines with acomprehensive 1-year warranty for your peace of mind.
4
Innovation
We continue improving and innovating, never stop.
WSJ1000-Full Automatic Sanitary Napkin Machine Manufacturer Advantage
Stable
Performance
Quality
Assurance
Technical
Support
Customized
Design
1.Stable Performance
For both the low-speed mode and high-speed mode, the production performance will be consistent, which can reduce manufacturing waste and save cost.
2.Quality Assurance
All purchased components are tested by our staff at QC department so that each and single part are of the exact quality and dimension as designed.
3.Technical Support
Within a one-year warranty period, Haina will offer free on-site inspection and maintenance to our clients. Please check here for more details.
4.Customized Design
We can offer customized design for your demand and make sure the solutions are satisfied.
Quality Assurance
Checking the dynamic balance
The dynamic balance test of the rotating part is carried out by the domestic advanced balancing machine, according to different speed and loads of the spare parts, to ensure all spare parts are stable during running.
Testing the heat treatment and hardness.
The metal material requirement is higher for core parts, so we use new materials at home and abroad, to establish our standard heat treatment processing, and also use hardness testing , to improve hardness of spare parts and increase resistance.
Measuring precision
Precision testing includes dimension tolerance and shape tolerance testing, we use specific testing equipment to ensure the accurate of each spare part.
WSJ1000-Full Automatic Sanitary Napkin Machine Manufacturing Process
Designing a machine that meets your requirements.
The first phase for each project is designing the machine. During this period, our engineers and project manager will work with you closely, understanding the product specification, raw materials used, and the expected functions of the WSJ1000-Full Automatic Sanitary Napkin Machine.
Purchasing parts and practising quality control.
After the machine design is confirmed with our client, our project manager will work with the procurement department for the purchase of parts and components used in the machine. All purchased components have to go through testings within the quality control department. Our staff make sure that each part is of the exact same quality and size as indicated on the machine design.
Assembling the whole machine
During this period, our staff at the assembly facility will assemble the WSJ1000-Full Automatic Sanitary Napkin Machine according to machine drawing.
Calibrating the machine
After assemble of the whole machine, we will calibrate the WSJ1000-Full Automatic Sanitary Napkin Machine and put it into trial operation. We start from setting standards of production speed,stability and product performance. Then we start the machine and test its actual performance. Our engineers and technicians will work together on the calibration and modification to meet our clients' demands.
Delivering the machine
After calibrating the machine inside our factory, we will then request the client in our facility to confirm the machine performance. Only when our client approves on the machine will we arrange the delivery.After the WSJ1000-Full Automatic Sanitary Napkin Machine has reached the client's destination, technicians will be assigned on site, taking care of the assemble and calibration.
WSJ1000-Full Automatic Sanitary Napkin Machine Related Cases
The Satisfaction Of Our Customers Is Our Motivation!
Our Certifications
Haina Baby Diaper Manufacturing Machine CE Certificate
Haina Diaper Machinery ISO9001 Certificate
Haina Pull up Diaper Production Line CE Certificate
Haina Adult Diaper Production Line CE Certificate
Haina Sanitary Pad Making Machine CE Certificate
Haina Diaper Making Machine OHSAS18001 Certificate
Haina Diaper Machine ISO14001 Certificate
FAQ
1.I want to launch a factory manufacturing baby diapers, what should I do in the first start?
A. do the market research for the baby diaper you want to produce
B. send us samples for free analysis cost
C. feasible report
2.Is it possible to see your machine running when we inspect your factory?
Of course, we can show you our machine running at working period in our local customer’s factory.
3.Will you help us train our workers?
Yes, you can send technicians to our factory to be trained how to run the machine before shipment.

Accommodation and food can be provided.

When the machine arrives at your side, we can send technicians to your side to install and test the machine and train your workers as well.

4.Where is your factory, can we come and see it?
We are in Jinjiang city, Fujian province.

The nearest airport name is Jinjiang airport, which takes 1.5H from Guangzhou airport and 2H from Shanghai airport.

The other airport’s name is Xiamen airport.

For hotels, there are Marco Polo(★★★★★), Grand Honor hotel(★★★★) in our city.
