Place of Origin: CHINA
Brand Name: HAINA
Configuration: Confirmed per project
Model Number: HD1200 sanitary pad machine
Payment & Shipping Terms:
Order Scope: Confirmed equipment modules
Quotation: Based on product and automation scope
Export Packing: Confirmed in offer
Lead Time: Confirmed in contract
Payment Terms: Confirmed in contract
Delivery Scope: Confirmed in technical agreement
The HD1200 record describes a fully automatic sanitary pad machine with an automatic bagger, but material compatibility is the practical starting point for configuration. A roll name alone does not tell the engineering team how it will unwind, splice, track, bond or cut. The title is retained as the page identity; the word Best is not used here as a comparative claim. This review instead connects the documented 1,200 ppm design speed and 1,000 ppm stable working speed to the actual substrates and adhesive system that must be qualified.
Material compatibility map
Recorded input
Function in the pad or pack
Data to qualify
Line area affected
Topsheet nonwoven
Body-facing surface
Roll width, basis weight, treatment, tensile behavior
Unwind, guiding and product registration
Fluff pulp and SAP
Absorbent core
Core recipe, dosing behavior and dust control needs
Core formation and containment
Backsheet and release paper
Barrier and adhesive protection
Film stretch, silicone release and cut response
Lamination, positioning and final cut
Pouch film and easy tape
Individual wrap
Film gauge, print mark and tape position
Wrapping and discharge
Construction and position glue
Layer bonding and garment fixation
Application temperature, open time and coat target
Glue units and bond inspection
One recorded list, several purchase decisions
Core route
The source includes fluff pulp, SAP and airlaid paper. The signed product drawing should state whether airlaid supplements or replaces part of the formed core for the intended recipe.
Surface route
Topsheet nonwoven is listed, while surface feel, hydrophilicity and edge treatment are not. Samples and roll specifications must supply those details.
Pack route
Pouch film and easy tape are listed. Print registration, seal behavior and pack presentation need their own trials before bagger settings are frozen.

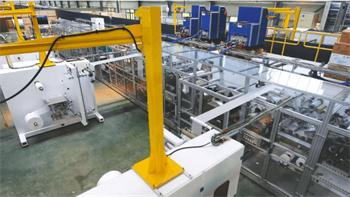

The machine view helps map each qualified roll to its unwind and process route.
Control features that support material handling

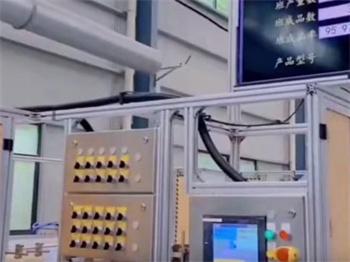

The historical description records servo drive, digital size change, an intelligent HMI, tension control with a buffer and automatic web guiding for zero-speed splice. It also references BST from Germany or FIFE from the USA for web guiding. These are useful control concepts, not a substitute for the final component schedule. Confirm the selected guiding hardware, sensor range, recipe permissions and splice method in the contract.
Operating window recorded for HD1200
Line envelope
31 m x 4 m x 5 m
Speed references
1,200 ppm design; 1,000 ppm stable
Power
380 V, 50 Hz; 290 kW recorded capacity
Compressed air
0.6-0.8 MPa
Mass
50 tons
Performance references
At least 85% efficiency; no more than 3% rejection
How to run a material trial
Approve a finished-pad drawing and retain a signed reference sample.
Record every roll specification, core ingredient and adhesive data sheet against its unwind or applicator.
Run at a controlled setting first and inspect tracking, core distribution, bond integrity and wrapper registration.
Advance toward the agreed acceptance condition only after defects have a traceable cause and corrective setting.
Archive the successful recipe together with material lot details and approved samples.
Material-focused FAQs
Can a buyer substitute another topsheet after FAT?
It may be possible, but a change in width, basis weight, surface treatment or tensile behavior can alter tension and tracking. Requalification is safer than assuming equivalence.
Does the listed 1,000 ppm stable speed apply to any raw material?
No. It is a recorded machine reference. Stable acceptance must use the agreed material set, product construction and pack recipe.
Is the bagger automatically included in a fixed form?
The legacy text says the auto stacker and packaging machine are defined by customer need, so pack count and bag format must be specified.
Procurement conclusion
For this HD1200 page, the strongest comparison is a compatibility file, not a feature count. HAINA and the buyer should freeze the material schedule, sample, pack recipe, utility conditions and FAT observations together so later substitutions can be evaluated against evidence.

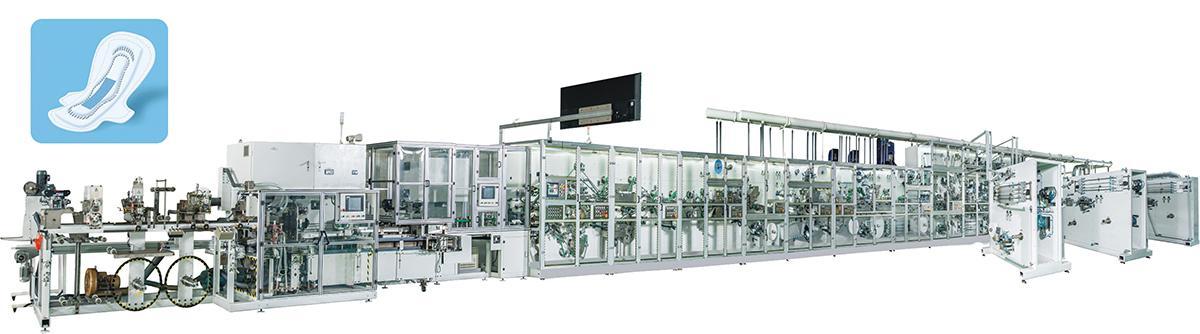

Best sanitary pad machine+Auto Bagger
Dimensions(L×W×H8)
31m*4m*5m
Design Speed:
1200ppm
Stable Working Speed:
1000ppm
Rejection Rate:
≤3%
Efficiency:
≥85%
Power Source:
380V,50HZ
Machine Capacity:
290KW
Air Pressure:
0.6-0.8Mpa
Machine Weight:
50 tons
Factors influencing the quality management of Best sanitary pad machine maintenance
Due to the long-term operation of the Best sanitary pad machine, it is inevitable that various failures will occur. Through mechanical maintenance, defects are repaired, functions are improved, and normal operation is ensured. Maintenance quality management plays a decisive role in the operation status and economic benefits of equipment after maintenance. It is necessary to strengthen the quality management during maintenance, improve the maintenance level, and ensure the integrity rate of the equipment.
HAINA Is Professional Manufacturer Of HD1200 FULL Automatic Best sanitary pad machine In China,
The company was founded through one group of technicians and designers with experience in the production of machines for baby diapers, incontinence adult diapers, lady sanitary napkins and panty liners.
Global Presence
Customized Design
Cost-effectiveness
Stable Performance
HD1200 FULL Automatic Best sanitary pad machine Related Services
Remote monitoring and diagnostics
With advanced technology, we offer remote monitoring and diagnostics services, allowing us to detect and resolve issues with your diaper machine remotely, saving you time and resources.
Efficiency analysis and improvement
We analyze your production process to identify bottlenecks and inefficiencies, providing recommendations for improvement to optimize your diaper machine's performance.
Preventive maintenance
Regular maintenance is crucial for the smooth operation of your diaper machine. Our service includes scheduled inspections and maintenance to prevent breakdowns.
This Feminine Napkin Machine is a workhorse! It's reliable, efficient, and has become an essential part of our production line
The Feminine Napkin Machine has helped us
Samantha P2024-05-31
The Feminine Napkin Machine has helped us streamline our manufacturing process and reduce costs. It's a fantastic investment for any company
easy it is to operate the Feminine Napkin Machine
Amanda K2024-05-31
I love how easy it is to operate the Feminine Napkin Machine. It has increased our production capacity significantly
Feminine Napkin Machine has exceeded my expectations in every way
Kimberly S2024-05-31
As a small business owner, I appreciate the durability and performance of this machine. Feminine Napkin Machine has exceeded my expectations in every way.
