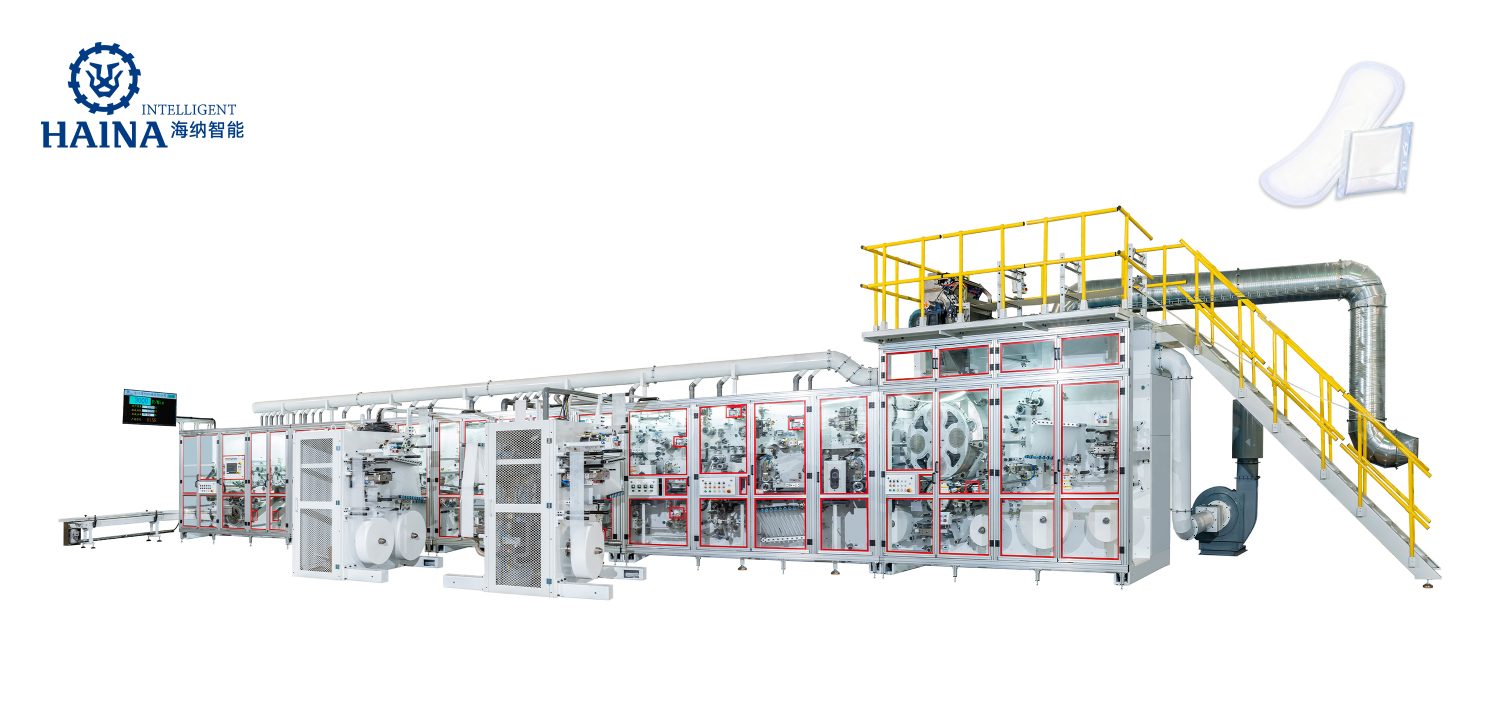

HD3500 Full Servo Pantyliner Production Line+Auto Bagger
Product Details:
Place of Origin: CHINA
Brand Name: HAINA
Configuration: Confirmed per project
Model Number: HD3500
Payment & Shipping Terms:
Order Scope: Confirmed equipment modules
Quotation: Based on product and automation scope
Export Packing: Confirmed in offer
Lead Time: Confirmed in contract
Payment Terms: Confirmed in contract
Delivery Scope: Confirmed in technical agreement
The HD3500 page contains two different speed records. Product issue fields state 3,500 pieces per minute design and 3,000 pieces per minute stable, while the legacy specification table states 1,800 and 1,500 pieces per minute. Neither pair should be selected silently.
An OEM delivery plan for this full-servo pantyliner line should resolve that conflict before engineering begins. The archived product length is 155 mm and is to be customized. The page also identifies an automatic bagger, servo drive, digital size change, HMI operation, tension buffering and automatic web guiding. These facts form a starting record; the signed technical agreement must define the product, pack and verified performance basis.
Use the equipment layout as a scope reference after the approved product and pack are defined.
Milestone one: approve the reference product
01
Freeze the 155 mm pantyliner drawing, edge style, layer sequence, adhesive zones, release paper, individual wrap and finished pack. Retain signed samples for later comparison. The old description refers to a flat or textile-edge topsheet, ADL, tissue or airlaid, a cotton core mixed with SAP, backsheet, release paper, pouch film and easy tape; the final recipe must choose the actual construction.
Milestone two: close the technical scope
Maker
List converting modules, control components, web-guiding selection, safety devices and format responsibility.
Individual wrap
Define pouch film, print registration, easy-tape position and transfer orientation.
Auto bagger
Specify stack count, bag dimensions, insertion and discharge. The legacy scope says packing is defined by customer need.
Milestone three: resolve the data register
Topic
Legacy record A
Legacy record B or open point
Release action
Design speed
3,500 pieces/minute
1,800 pieces/minute in specification table
Confirm one contractual value and test basis
Stable speed
3,000 pieces/minute
1,500 pieces/minute in specification table
Confirm sustained condition, materials and pack
Product size
155 mm length
To be customized
Approve drawing and samples
Web guiding
Germany BST or USA FIFE reference
Final brand and model not stated
Freeze bill of materials
Milestone four: verify factory and utility inputs
31 m x 4 m x 5 mrecorded line dimensions
380 V, 50 Hzrecorded power source
290 kWrecorded machine capacity
0.6-0.8 MParecorded air pressure
50 tonsrecorded machine weight
The final site plan should add service aisles, roll handling, auxiliary equipment, bagger clearance and unloading access. No delivery duration or civil-design allowance is stated in the archived page, so those items require project documents rather than assumptions.
Milestone five: conduct a contract-based FAT
Use the approved product, recorded material lots and agreed wrapper and bag recipe. The source lists topsheet nonwoven, fluff pulp, SAP, backsheet, back release paper, pouch film, easy tape, airlaid paper, construction glue and position glue. Record sustained speed, efficiency, rejection, registration, splice response, stop/restart behavior and downstream balance using written formulas. The table's at least 85% efficiency and no more than 3% rejection references also need definitions before they can be accepted.
Milestone six: hand over a usable production record
Approved drawings, samples and material schedule
Final equipment and component list
Machine and pack recipes demonstrated at FAT
Open-item closure and retest evidence
Delivered manuals, training record and spare-parts schedule
Site verification and commissioning responsibilities
OEM delivery FAQs
Which HD3500 speed value should be quoted?
The archived records conflict. Quote neither as a settled guarantee until the signed contract identifies the correct design and stable values and the FAT condition.
Is the automatic bagger a standard fixed package?
No fixed pack format is supported by the old page. Count, bag size and transfer arrangement must be selected around the customer's requirement.
Can an OEM schedule be promised from this page alone?
No. The archived evidence contains no delivery duration. Timing depends on scope approval, engineering inputs, materials for testing and the agreed project plan.
Delivery decision
Do not release this HD3500 project on the strength of a model label or headline speed. HAINA and the buyer should first sign the product file, corrected data register, equipment boundary, site inputs and FAT method. Each later milestone can then close against objective evidence without rewriting the basis of supply.
