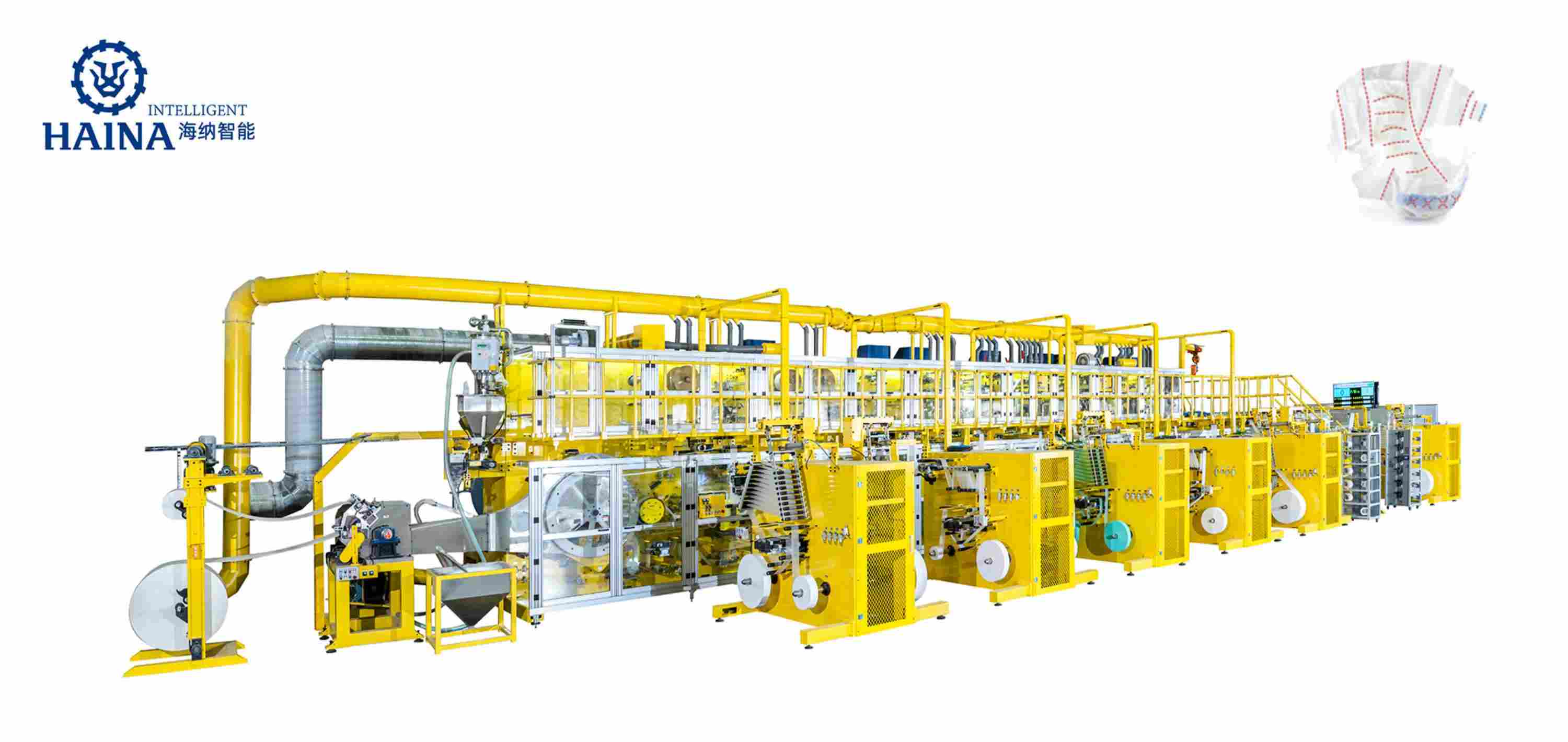

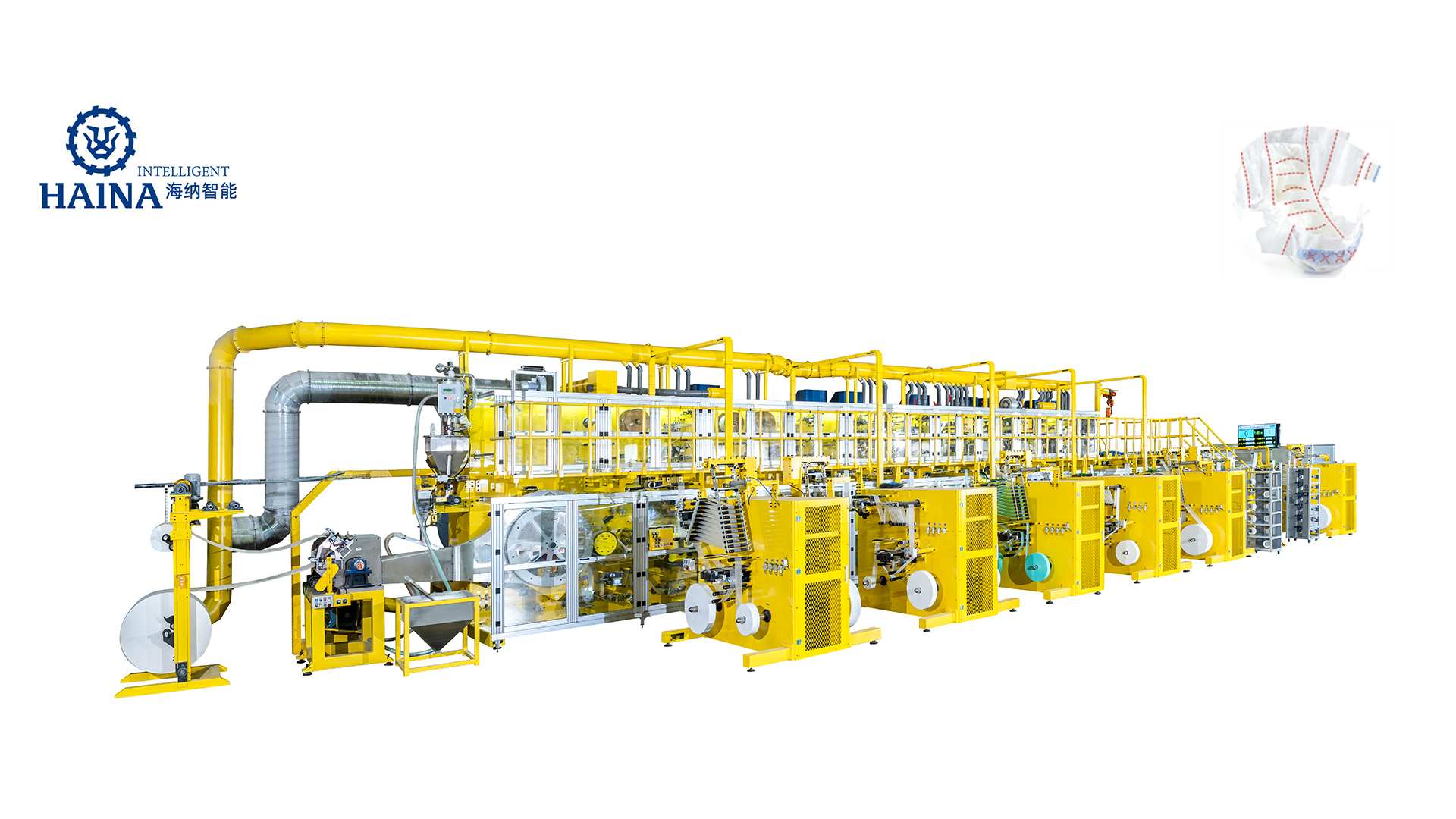

TK900 Full Servo T Shape Baby Diaper Production Line+Auto Bagger
Product Details:
Place of Origin: CHINA
Brand Name: HAINA
Configuration: Confirmed per project
Model Number: TK900
Payment & Shipping Terms:
Order Scope: Confirmed equipment modules
Quotation: Based on product and automation scope
Export Packing: Confirmed in offer
Lead Time: Confirmed in contract
Payment Terms: Confirmed in contract
Delivery Scope: Confirmed in technical agreement
The TK900 title combines a full-servo T-shape baby diaper line with an automatic bagger. Its legacy file identifies the converting functions and recorded performance, but it does not fully define the bagger interface. This page maps what is known and shows where project-specific scope must be attached.
Read the line as connected modules
1
Material input
Load diaper webs, absorbent inputs, elastics, fastening components and adhesives to the approved winding and lot plan.
2
Tension control
Stabilize incoming webs before forming and joining operations.
3
Forming operations
The earliest description names embossing and perforation among the machine modules.
4
Folding
Deliver a controlled finished orientation from the converting section.
5
Auto bagger boundary
Define count, orientation, bag specification and the accepted handoff in the contract.
Material stations for the T-shape product
Body layers Hydrophilic topsheet, hydrophobic leg-cuff nonwoven, upper and lower tissue or nonwoven, PE film and laminating nonwoven.
Core inputs ADL, fluff pulp and SAP.
Ear and fastening set Frontal tape, large-ear elastic nonwoven, small-ear nonwoven and magic side tape.
Bonding functions Construction glue, elastic glue and wetness-indicator glue.
The approved diaper sample should locate every item in this list. That station-to-product link is more useful than a generic inventory because it reveals missing unwinds, optional applicators and acceptance checks.
Control and alarm layer
Servo and PLC context
The product title identifies a full-servo line, while the earliest body says the modules are controlled by a programmable logic controller. Final controls should be documented by station and recipe.
Alarm response
The legacy page states that an automatic alarm system alerts operators to detected faults. FAT should retain the message, machine response, operator action and restart sample for agreed tests.
Recorded performance and factory envelope
For TK900, the old record starts with Design Speed 900ppm and Stable Working Speed 800ppm. It lists a 30m*6m*3.8m envelope, Rejection Rate ≤4% and Efficiency ≥85%. Project utilities retain Power Source 380V,50HZ, Machine Capacity 290KW and Air Pressure 0.6-0.8Mpa. The same record gives Machine Weight 75 tons.
Line property
Recorded value
Project use
Design speed
900 ppm
Engineering reference
Stable working speed
800 ppm
Basis for the contracted witnessed run
Rejection and efficiency
Reject ≤4%; efficiency ≥85%
Requires written counting rules
Dimensions
30 m x 6 m x 3.8 m
Equipment envelope before service space
Power and air
380 V, 50 Hz; 290 kW; 0.6-0.8 MPa
Destination utility review
Weight
75 tons
Foundation and lifting review
Define the maker-to-bagger handoff
Maker dischargeCount and orientationBagging scopeAccepted pack
The title confirms an auto bagger, but the source does not specify pack count, bag material, sealing method or accumulation behavior. These are contract questions, not details to guess. The interface test should state where pieces are counted, how malformed products are rejected, what happens after a downstream stop and which pack defects belong to the bagger.
Commission the line by module, then as one system
First verify each material path, control response and product feature at controlled conditions. Next connect folding, discharge and the selected bagger scope. The combined run should retain product samples, pack samples, speed data, stop causes and separate reject totals for converting and packaging. HAINA can then hand over a module record that matches the complete line actually supplied.
TK900 module questions
Which modules are explicitly named in the old record?
Unwinding, tension control, embossing, perforation and folding are named, with PLC control described.
Does the old file fully define the auto bagger?
No. The title includes it, but the packaging format and interface details require contract confirmation.
How should 800 ppm be accepted?
Use the approved product, named material lots, connected downstream scope, timed run and written quality formula.
Dimensions(L×W×H8)
30m*6m*3.8m
Design Speed:
900ppm
Stable Working Speed:
800ppm
Rejection Rate:
≤4%
Efficiency:
≥85%
Power Source:
380V,50HZ
Machine Capacity:
290KW
Air Pressure:
0.6-0.8Mpa
Machine Weight:
75 tons
Dimensions(L×W×H8)
30m*6m*3.8m
Design Speed:
900ppm
Stable Working Speed:
800ppm
Rejection Rate:
≤4%
Efficiency:
≥85%
Power Source:
380V,50HZ
Machine Capacity:
290KW
Air Pressure:
0.6-0.8Mpa
Machine Weight:
75 tons
