Place of Origin: CHINA
Brand Name: HAINA
Configuration: Confirmed per project
Model Number: CK300 Adult Diaper Machine
Payment & Shipping Terms:
Order Scope: Confirmed equipment modules
Quotation: Based on product and automation scope
Export Packing: Confirmed in offer
Lead Time: Confirmed in contract
Payment Terms: Confirmed in contract
Delivery Scope: Confirmed in technical agreement
CK300 is best reviewed as an adult diaper production envelope with several conditions still to be locked. The archived specification table supplies useful planning values for speed, utilities, footprint and machine mass. It does not identify the approved diaper size, material grades or packaging boundary, so those items belong in the commercial schedule and factory acceptance test.
ModelCK300Full-servo adult diaper machine

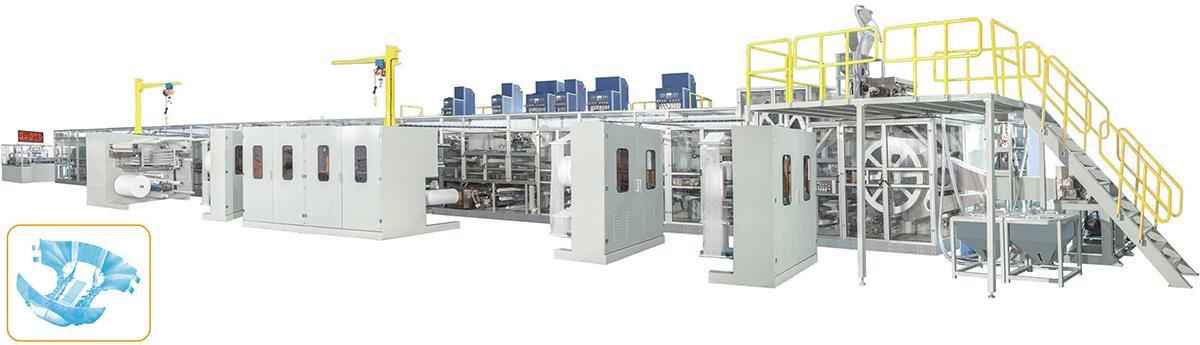

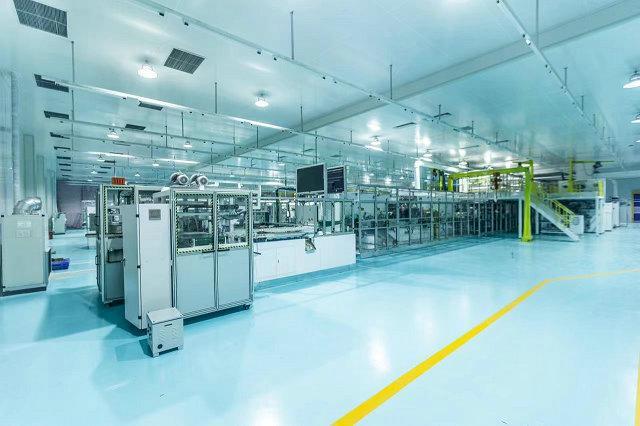

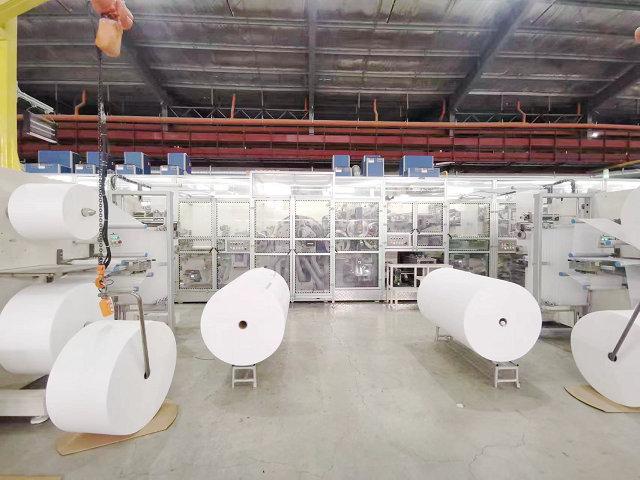

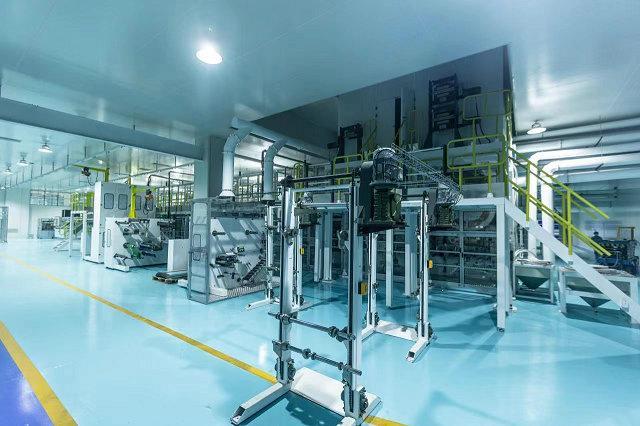

Overall equipment view for footprint discussion. Line detail for access and material-path review. Production section used when defining inspection responsibility. Configuration reference for the signed supply list.
CK300 decision sheet
Archived source wording retained for verification
This is full servo adult diaper machine for the customer.
The machine stable speed is 300PPM.
Design Speed: 300ppm
Stable Working Speed: 200-250ppm
Power Source: 380V,50HZ
Machine Capacity: 450KW
Air Pressure: 0.6-0.8Mpa
Machine Weight: 90 tons
Machine reference300 ppm design speed
Use as the mechanical design reference, not the automatic saleable-output figure.
Production reference200-250 ppm stable range
Verify with the contracted product, materials and downstream handling.
Quality references≥85% efficiency and ≤4% rejection
Define run duration, exclusions, good-product counting and reject boundaries.
Values that shape the factory plan
Recorded item
Legacy value
Decision before drawing approval
Equipment envelope
30m*10m*3.5m
Add roll-loading, service, waste and operator clearances around the recorded dimensions.
Power source and capacity
380V,50HZ and 450KW
Confirm destination voltage, final connected load and the buyer-supplier connection boundary.
Compressed air
0.6-0.8Mpa
State the required flow, air quality and tie-in point in the utility sheet.
Machine weight
90 tons
Check floor design, unloading route and lifting method.
Resolve the speed conflict before acceptance
Two archived values describe stable operation differently.
The original body says the machine stable speed is 300PPM, while its specification table records 200-250ppm as stable working speed and 300ppm as design speed. A quotation should not merge these values. The contract should identify the accepted diaper format and material set, then state the sustained-run target, sampling interval and treatment of planned stops.
Material interfaces define the real configuration
Skin and cuff webs
Hydrophilic topsheet, hydrophobic leg-cuff nonwoven, leg elastic and ADL.
Absorbent core
Fluff pulp, SAP, upper tissue or nonwoven, and lower tissue or nonwoven.
Backsheet and fastening
PE film, laminating nonwoven, frontal tape, side tape and waistband.
Bonding
Construction glue and elastic glue.
For engineering, each name needs a supplier grade, width, basis weight, winding direction and approved sample. Those details affect unwind arrangement, guiding, tension, application position and tooling even when the finished product still carries the same general adult-diaper name.
Build an acceptance record that can be repeated
Freeze the product.Approve drawings and samples for every intended size.
Freeze the inputs.Record material lots, roll data, pulp and SAP recipe, and adhesive conditions.
Freeze the boundary.Identify utilities, stacking, packing and discharge responsibilities.
Run and count.Log elapsed time, good pieces, rejected pieces and every stop reason.
Retain evidence.Keep measurements, representative samples, alarms and signed observations.
Questions for the CK300 technical meeting
Which speed should appear in the contract?
The signed agreement must distinguish the 300ppm design reference from the table's 200-250ppm stable range and resolve the separate 300PPM legacy sentence.
Does the material list approve any supplier grade?
No. It identifies material types only. Commercial grades and roll data need approval against the buyer's product sample.
Is 450KW the final site demand?
It is the recorded machine-capacity figure. The electrical design should use the final connected-load schedule and confirmed local supply.
Use the dashboard as a contract-control tool
The CK300 record is useful because it exposes the decisions behind the headline figures. HAINA and the buyer can use this evidence to align the diaper sample, material schedule, factory layout and acceptance method before manufacturing starts. Once those four items agree, the page becomes a practical engineering reference rather than a generic speed claim.
