Place of Origin: CHINA
Brand Name: HAINA
Configuration: Confirmed per project
Model Number: CK300 Adult Diaper Machine
Payment & Shipping Terms:
Order Scope: Confirmed equipment modules
Quotation: Based on product and automation scope
Export Packing: Confirmed in offer
Lead Time: Confirmed in contract
Payment Terms: Confirmed in contract
Delivery Scope: Confirmed in technical agreement
CK300 should be evaluated as a recorded adult diaper line configuration, not as a universal speed promise. Its source table lists a 300 ppm design speed and a 200-250 ppm stable working range. A separate legacy sentence says 300 ppm stable speed, so that conflict must be resolved in the signed technical agreement and demonstrated with the buyer's materials.
Design reference300 ppm
Stable range in table200-250 ppm
Efficiency reference≥85%
Rejection reference≤4%

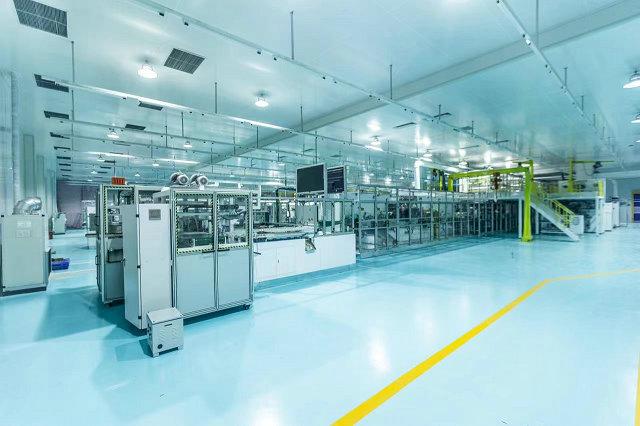

CK300 line view for footprint planning. Adult diaper converting section and service access. Machine detail used for configuration review.
Recorded operating envelope
Factory item
Recorded value
What the buyer should confirm
Installed footprint
30 m × 10 m × 3.5 m
Service aisles, unwind access and packaging position on the final layout
Electrical supply
380 V, 50 Hz; 450 kW listed capacity
Local voltage, connected load and distribution boundary
Compressed air
0.6-0.8 MPa
Consumption, dryer quality and connection point
Machine mass
90 tons
Floor loading and installation route
Why design speed and stable speed are separate numbers
Design speed describes the mechanical reference of the configuration. Stable working speed is the production range to be accepted with an agreed diaper size, pulp and SAP recipe, nonwoven rolls, adhesive condition and pack count. Efficiency and rejection are separate measures again. A useful FAT record therefore shows elapsed run time, good product count, rejected count and every stop reason rather than quoting one peak number.
Adult diaper material path
Hydrophilic topsheetHydrophobic leg-cuff nonwovenLeg elasticADLFluff pulp and SAPUpper and lower tissue or nonwovenPE film and laminateFrontal and side tapesWaistbandConstruction and elastic adhesives
These material names define interfaces, not approved commercial grades. Roll width, basis weight, core diameter, splice direction and adhesive temperature window should be taken from the actual supplier data and sample diaper. Adult products are wide and material-heavy, so a substitution that appears minor can affect tension, tracking, core distribution and folding.
Control, guiding and safety scope
The saved CK300 description identifies servo drive, an HMI, buffer-based tension control, automatic web guiding and digital size change. It also records guards, emergency stops, safety identification and a pull wire on the drive side. The procurement document should turn those labels into an I/O list: controlled axes, recipes, alarms, access interlocks, guiding locations and the conditions for a zero-speed splice.
Packaging boundary
An automatic stacker and packaging machine were described as customer-defined. Pack count, stack orientation, discharge height and the communication handshake must therefore be frozen with the downstream supplier before layout approval.
Evidence package for acceptance
Approved adult diaper drawing and size recipe
Signed material roll schedule and supplier samples
Utility and footprint drawing with service clearances
Run log separating design speed, stable speed, efficiency and rejection
Alarm, safety and changeover records
Stacker and packaging interface confirmation
Questions to settle before ordering
Is 300 ppm the guaranteed stable output?
No. The source table records 200-250 ppm as the stable range while a legacy sentence states 300 ppm. The contract and FAT must resolve that discrepancy.
Can the line run several adult diaper sizes?
The saved description refers to digital size change and customization. Final sizes, tooling and recipes must be based on approved product drawings.
Is the packing machine included automatically?
No fixed packing scope is recorded. The stacker and packaging machine are to be defined by the customer and confirmed in the supply boundary.
Configuration conclusion
CK300 is a credible starting point when the buyer needs a full-servo adult diaper line around the recorded 300 ppm design reference. The purchase decision should be made from the accepted stable range, material schedule, utility plan and pack interface. HAINA can then configure the project against one controlled set of samples instead of an ambiguous headline speed.
Dimensions(L×W×H8)
30m*10m*3.5m
Design Speed:
300ppm
Stable Working Speed:
200-250ppm
Rejection Rate:
≤4%
Efficiency:
≥85%
Power Source:
380V,50HZ
Machine Capacity:
450KW
Air Pressure:
0.6-0.8Mpa
Machine Weight:
90 tons
This is full servo adult diaper machine for the customer. The machine stable speed is 300PPM.
The adult diapers produced by this machine can be used in the elderly, bed-sick, post-operation, inconvenient people. With the aggravation of the aging trend of Chinese population, adult series products are more and more recognized by the public, the demand is also constantly expanding, timely access to market trends, grasp the opportunity, can provide great help for the long-term development of enterprises.
We can offer customized design for your demand and make sure the solutions are satisfied.
